Flextherm PS 200 to PS 5000 Buffer Vessel / Tank - 3 Bar

Flextherm PS 200 to PS 5000 Buffer Vessel / Tank - 3 Bar

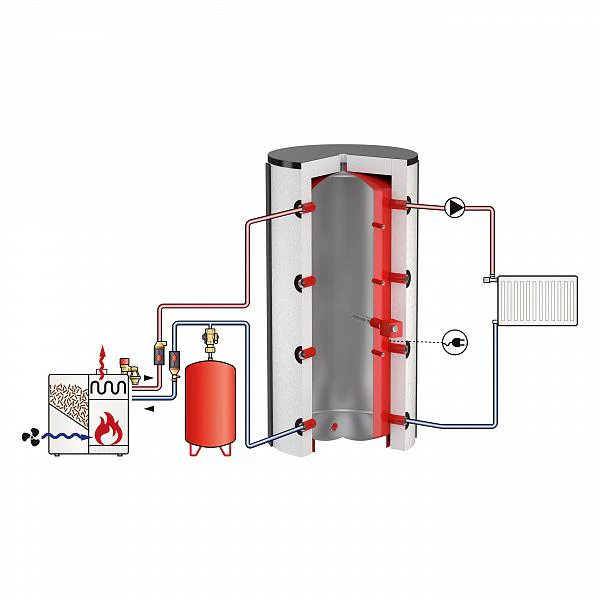

Buffer vessels for use in closed heating installations. Can also be used as a buffer vessel in cooling installations (insulation for cooling installations is not available; for buffer vessels for cooling installations provided with insulation, see Flamco FlexTherm PSK).

  • On a construction with adjustable feet for accurate levelling (up to 2000 litres).
  • Can be connected with several buffer vessels.
  • Temperature sensor connections: GΒ½" (4x).
  • Connections under a 90Β° angle, enabling an angular setting.
  • Alternative connections, capacities and operating pressures are available upon request.

Technical Specifications

  • Maximum working pressure: 3 bar.
  • Maximum working temperature: 95 Β°C.
  • Steel vessel (made of S235JR): Outside powder-coated, inside untreated.
  • Insulation (Excluded - Can be ordered separately (see Chapter 'Accessories for Water Heaters and Storage Vessels'):
  • EPS insulating mantle (fire category B1) with a polypropylene outer shell in white (RAL 9010) / white aluminium (RAL 9006).


Type Capacity
[l]		 DimensionsΒ * Weight
[kg]		 Order
Code
Ø
[mm]		 H
[mm]		 Tilting height
[mm]
FlexTherm PS  200  200  480 1300 1350  47 1 18600
FlexTherm PS  300  300  550 1590 1650  66 1 18605
FlexTherm PS  500  500  650 1650 1700  80 1 18756
FlexTherm PS  600  600  650 2050 2100  93 1 19380
FlexTherm PS  750  750  790 1800 1850 102 1 18786
FlexTherm PS  850  850  790 1950 2000 140 1 18793
FlexTherm PS 1000 (Ø790) 1000  790 2200 2250 170 1 18885
FlexTherm PS 1000 (Ø850) 1000  850 2000 2050 172 1 18850
FlexTherm PS 1200 1200  850 2250 2300 175 1 18843
FlexTherm PS 1500 1500 1000 2320 2380 225 1 18816
FlexTherm PS 1800 1800 1100 2200 2250 272 1 18856
FlexTherm PS 2000 2000 1100 2350 2400 310 1 18826
FlexTherm PS 3000 3000 1250 2800 2900 586 1 18670
FlexTherm PS 4000 4000 1500 2950 3050 850 1 19340
FlexTherm PS 5000 5000 1600 3250 3350 970 1 19344

*Β Dimensions excluding insulation.

FlexTherm PS 200 - 5000 - Performance

Technical specifications FlexTherm PS 200 - 5000
200 300 500 600 750 850 1000
Ø790		 1000
Ø850		 1200 1500 1800 2000 3000 4000 5000
Total heat loss (EN 12897) [W] 76 107 138 110 120 129 142 141 133 162 173 183 n/a n/a n/a
Energy label C D D C C C C C C C C C n/a n/a n/a
Type System
connections		 Distance from floor to connections
A
[mm]		 B
[mm]		 C
[mm]		 D
[mm]		 E
[mm]		 F
[mm]
FlexTherm PS  200 8 180  480 -  780  980 1080
FlexTherm PS  300 8 210  590 -  980 1260 1360
FlexTherm PS  500 8 180  600  770 1010 1330 1430
FlexTherm PS  600 8 180  730  980 1280 1730 1830
FlexTherm PS  750 8 270  690  940 1100 1420 1520
FlexTherm PS  850 8 270  740  970 1200 1570 1670
FlexTherm PS 1000 (Ø 790) 8 270  820  995 1370 1820 1920
FlexTherm PS 1000 (Ø 850) 8 305  790 1075 1220 1605 1705
FlexTherm PS 1200 8 305  855 1195 1405 1855 1955
FlexTherm PS 1500 8 340  890 1230 1440 1890 1990
FlexTherm PS 1800 8 350  850 1100 1350 1750 1850
FlexTherm PS 2000 8 350  900 1310 1450 1900 2000
FlexTherm PS 3000 8 450 1060 1390 1720 2240 2330
FlexTherm PS 4000 8 540 1150 1480 1810 2330 2420
FlexTherm PS 5000 8 695 1305 1635 1965 2485 2575
