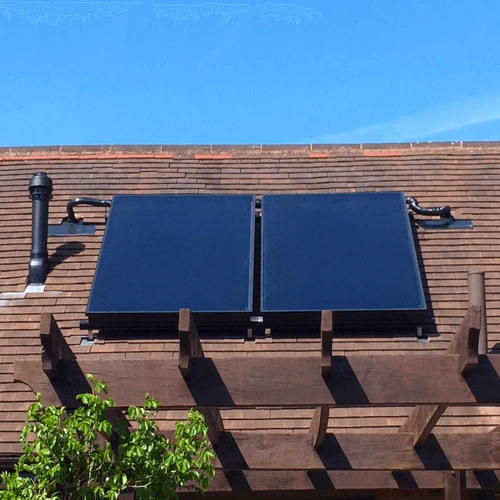

The sleek Joule Navitas On-Roof solar system is designed and manufactures to work in Northern European climates. The collector’s black finish makes it an attractive addition to any roof.

Joule Navitas On-Roof solar systems have been tested up to four times the requirements of EN12975: 1-2. The high efficiency collectors are further tested to determine their maximum impact force resistance levels and the maximum positive and negative loading force that the collectors can resist.

Below Kits available. Contact us for quotes: Live Chat / 01985 850982

SX-OR-2.0-0-01-S - 1 Panel 2m On-Roof Solar Kit - Slate
SX-OR-2.0-0-02-S - 2 Panel 2m On-Roof Solar Kit - Slate
SX-OR-2.0-0-03-S - 3 Panel 2m On-Roof Solar Kit - Slate
SX-OR-2.0-0-04-S - 4 Panel 2m On-Roof Solar Kit - Slate

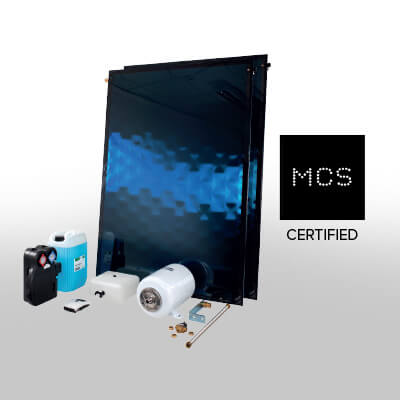

Each Kit Includes

2m Vertical Solar Panel
Panel Clamp Kt
1 x Aluminium Profile 1m (Included in 1,3 Panel kit)
1 x Aluminium Profile 2m (Included in 2,3,4 Panel kit)
1 x Solar Controller Deltasol CS/2
1 x Solar Expansion Vessel 24Ltr
1 x Solar Expansion Vessel Connect
1 x Solar Pump Station Dual 5m
1 x 20L Pre-Mixed Solar Fluid
1 x Solar Discharge- Plastic
1 x Thermo Mixing Valve 3/4 NRV
1 x Solar Pipe Entry Flashing
2 x Solar Elbow 3/4 x 3/4 Flat Face
1 x Solar Fitting 3/4 x 3/4 nip DN16

Product Data

Slide right to view table - DOWNLOAD FULL INSTALL MANUAL

TECHNICAL DATA	2M	2.5M
Certification Number	BBA 0192	BBA 0192
Collector type	Roof-mounted collector	Roof-mounted collector
Overall area [m2]	2.02	2.34
Absorber area [m2]	1.85	2.15
Aperture area [m2]	1.93	2.23
L x W x H [mm]	1.730 x 1.170 x 73	2.000 X . 1.170 X 73
Weight [kg]	31	32
Absorber capacity [L]	1.56	1.56
Housing	Al-frame	Al-frame
Absorption* [%]	95	95
Emission* [%]	5	5
Ø manifold [mm]	18 or 22 (¾ or 1″)	18 or 22 (¾ or 1″)
Max. operating pressure	10 bar	10 bar
Proper heat transfer medium	Polypropylene glycol / water mixture	Polypropylene glycol / water mixture
Approved installation angle	min. 15°, max. 75°	min. 15°, max. 75°

Setting Out The Roof

Code	Dimensions
A	300mm
B	300mm
C	2000mm
D	1680mm
E	2420mm
F	3380mm

Mounting Orientation

Connecting Solar Pipe To The Panels

If you choose to use solar pipe either in full lengths or as tails the connections must be made to the panels prior to fitting the flashing kit.

The panels are terminated in 3/4” BSP flat face male nipple as supplied as part of the kit. Following the diagram below single fitting should be tightened to the flat face of the elbow connected to the panel.

Under Roof Remaining Work - Single Cylinder / Single Orientation

Under Roof Remaining Work - Single Cylinder / Dual Orientation

Under Roof Remaining Work - Duel Cylinder / Single Orientation

Standard Kit Components

2m & 2.5m On Roof Solar List		2m UK Pack Contents			2.5M UK Pack Contents			2.5m IE Pack Contents
Item Code	Description	1 Panel	2 Panel	3 Panel	1 Panel	2 Panel	3 Panel	1 Panel	2 Panel	3 Panel	1 Panel	2 Panel	3 Panel
SW-OR-00002.5V SW-OR-00002V	2m/2.5m Vertical Solar Panel	1	2	3	1	2	3	1	2	3	1	2	3
SKC-000000001	1 Panel Clamp Kit	1	•	•	1	•	•	1	•	•	1	•	•
SKC-000000002	2 Panel Clamp Kit	•	1	•	•	1	•	•	1	•	•	1	•
SKC-000000003	3 Panel Clamp Kit	•	•	1	•	•	1	•	•	1	•	•	1
SW-00000000-P1	Aluminium Profile 1m	1	•	1	1	•	1	1	•	1	1	•	1
SW-00000000-P2	Aluminium Profile 2m	•	1	1	•	1	1	•	1	1	•	1	1
SKN-C-000000CS2	Solar Controller Deltasol CS/2	1	1	1	1	1	1	1	1	1	1	1	1
SVE-0000000024	Solar Expansion Vessel 24Ltr	1	1	1	1	1	1	1	1	•	1	1	•
SVE-0000000035	Solar Expansion Vessel 35Ltr	•	•	•	•	•	•	•	•	1	•	•	1
SVE-0000000050	Solar Expansion Vessel 50Ltr	•	•	•	•	•	•	•	•	•	•	•	•
SVS-0000000000	Solar Expansion Vessel Connect	1	1	1	1	1	1	•	•	•	•	•	•
SZ-L-0D-0ERP-5	Solar Pump Station Dual 5m	1	1	1	1	1	1	1	1	1	1	1	1
SKU-0000000020	20L Pre-Mixed Solar Fluid	1	1	1	1	1	1	1	1	2	1	1	2
SVB-000000000P	Solar Discharge- Plastic	1	1	1	1	1	1	•	•	•	•	•	•
OZM-0000.75NRV	Thermo Mixing Valve 3/4” NRV	1	1	1	1	1	1	•	•	•	•	•	•
OZM-00000.75HP*	Thermo Mixing Valve 3/4” HP *	•	•	•	•	•	•	1	1	1	1	1	1
SZ-G-0G-000004	Solar Pipe Entry Gasket Set 4”	•	•	•	•	•	•	1	1	1	1	1	1
SZ-G-0G-000000	Solar Pipe Entry Flashing	1	1	1	1	1	1	•	•	•	•	•	•
SZF-3/4-3/4-MF	Solar Elbow 3/4” x 3/4” Flat Face	2	2	2	2	2	2	•	•	•	•	•	•
SZF-3/4-3/4-SM	Solar Fitting 3/4” x 3/4” nip DN16	1	1	1	1	1	1	•	•	•

Standard Kit - Solar Pipe

		UK PACK COMP			IE PACK COMP
Code	Description	1	2	3	1	2	3
DN16 Solar Tail Pack Standard System
SKT-00000000	DN16 Solar SS Insulated Tail 0.75m	•	•	•	1	1	1

10m DN16 Solar Pipe Pack Standard System
SPD-16-10-0000	DN16 10m sol SS pipe duo ins	1	1	1	1	1	1
SZ-J-0000DN-16	solar fitting joiner pack DN16	1	1	1	1	1	1

15m DN16 Solar Pipe Pack Standard System
SPD-16-15-0000	DN16 15m sol SS pipe duo ins	1	1	1	1	1	1
SZ-J-0000DN-16	solar fitting joiner pack DN16	1	1	1	1	1	1

25m DN16 Solar Pipe Pack Standard System
SPD-16-25-0000	DN16 25m sol SS pipe duo ins	1	1	1	1	1	1
SZ-J-0000DN-16	solar fitting joiner pack DN16	1	1	1	1	1	1
